Unifi <-> OPNsense/pfSense Wireguard S2S Tunnel

Many of the guides you can find online only provide you the information to set up a Site to Client (S2C) e.g. your network to a laptop, …

But not this one! The guide below will give you a step-by-step guide on how to set up an actual Site to Site (S2S) Wireguard tunnel between two actual remote sites.

After a bit of searching I figured out how I can accomplish this and so far its working wonderfully without any issues between 2 sites of mine.

Note: in neither of the peers add 0.0.0.0/0 as this will route all traffic to the other site! Unless this is a desired configuration you can ignore this note.

On the OPNsense /pfSense firewall

1. Create a new WG Tunnel Instance (e.g. WG0)
   • Give it a good name
   • Generate a public key
   • Enter a port e.g. 51820
   • Assign it a tunnel address e.g. 10.255.255.2/30

2. Create a new WG Peer
   • Give it a good name
   • Public key = Copy from the Unifi WG after private key generation (see Unifi steps)!
   • (Optional) Generate a pre-shared key
   • Allowed IPs add the remote network e.g. 192.168.0.0/24 and the remote tunnel addres of the Unifi controller WG instance e.g. 10.255.255.3/30
   • Set a Keepalive interval e.g. 30 seconds
   • Add this newly created peer to your e.g. WG0 instance

3. Configure a new interface
   • Interfaces -> Assignments -> Assign a new interface -> select WG0 -> Click add
   • Enable the interface and give it a description

4. Configure the Firewall rule (simplified to any-any rule for easier tutorial sake)
   • Firewall -> Rules -> Your WG interface -> Add
     • Direction = in
     • TCP/IP version = IPv4
     • Protocol = any
     • Source = any
     • Destination = any
     • Add a description
     • Save

5. Configure a static route
   • System -> Routes -> Configuration -> Add
     • Network address = 192.168.0.0/24
     • Gateway = Your interface from step 3
     • Add a description
     • Save

6. Configure Unbound to allow remote NW DNS queries (mandatory if you have DNS and DCs running at the remote site(s))
   • Services -> Unbound DNS -> Access lists -> Add
     • Access List name = e.g. My Unifi site NW
     • Action = Allow
     • Networks = 192.168.0.0/24
     • Add a description
     • Save


On the Unifi controller

1. Create a new WG Tunnel Client
   • Login to your Unifi Controller -> https://unifi.ui.com/consoles
   • Go to Settings -> VPN -> VPN Client -> Create New
   • Give it a good name
   • Setup = manual
   • Device wizard = wait with this for now as we are going to create later on an associated policy!
   • Content wizard = off
   • Generate a new private and public key pair
   • Tunnel IP = e.g. 10.255.255.3/30
   • Server address = The remote site’s address
   • Public server key = Copy from the opnsense/pfSense WG from step 1!
   • (Optional) Enter a pre-shared key generated on the opnsense/pfSense WG from step 2
   • Set primary DNS = 1.1.1.1
   • Set secondary DNS = 1.0.0.1
   • Apply settings

2. Create a new Policy
   • Go to Settings -> Policy Engine -> Policies -> Click on “Create new policy”
   • Select Route
   • Give it a good name
   • Type = Policy-Based
   • Interface = Your Wireguard tunnel
   • No kill switch!
     • As this is a S2S tunnel you do not wish to disable the internet on your Unifi site unless this is desired!
   • Source = Your Unifi network e.g. 192.168.0.0/24
   • Destination =
     • 192.168.1.0/24 = remote opensense/pfSense network(s)
     • 10.255.255.2/30 = remote opensense/pfSense Tunnel IP
   • Add

3. Configure a static route
   • Go to Settings -> Policy Engine -> Policies -> Click on “Create new policy”
   • Select Route
   • Give it a good name
   • Type = Static
   • Device = Gateway
   • Distance = 255, use a high metric number (anything but 1)
   • Destination = 192.168.1.0/24 = remote opensense/pfSense network(s)
   • Add

4. Create Firewall rules (policies)
   • Rule 1 for the Gateway access
     • Go to Settings -> Policy Engine -> Policies -> Click on “Create new policy”
     • Select Firewall
     • Give it a good name
     • Source zone = External
     • Source type = IP
     • Source IP = you can use a list ->
       • Create new list
       • Give it a good name
       • Type = IPv4
       • IPs to add
         • 192.168.1.0/24 = remote opensense/pfSense network(s)
         • 10.255.255.2/30 = remote opensense/pfSense Tunnel IP
     • Action = Allow
     • Destination zone = Gateway
     • Destination type = Any
     • Destination port = Any
     • IP version = IPv4
     • Protocol = All
     • Connection state = All
     • Schedule = Always
     • Add

   • Rule 2 for the Internal access
     • Go to Settings -> Policy Engine -> Policies -> Click on “Create new policy”
     • Select Firewall
     • Give it a good name
     • Source zone = External
     • Source type = IP
     • Source IP = you can use the created list from rule 1
     • Action = Allow
     • Destination zone = Internal
     • Destination type = Any
     • Destination port = Any
     • IP version = IPv4
     • Protocol = All
     • Connection state = All
     • Schedule = Always
     • Add

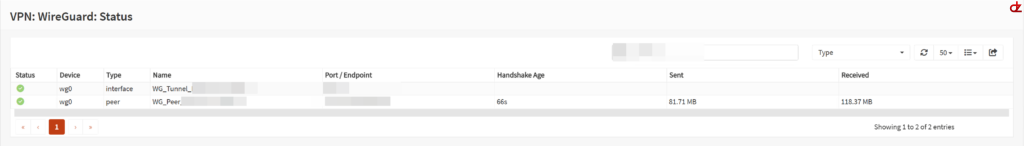

That’s it!

You now have successfully set up a S2S Wireguard between two sites.

Sources

Sources I’ve used to come to these results by combining different things and tying them together.
